如何实现发光动画

本文是Flutter动画系列的第十三篇，建议读者阅读前面的教程，做到无缝衔接。

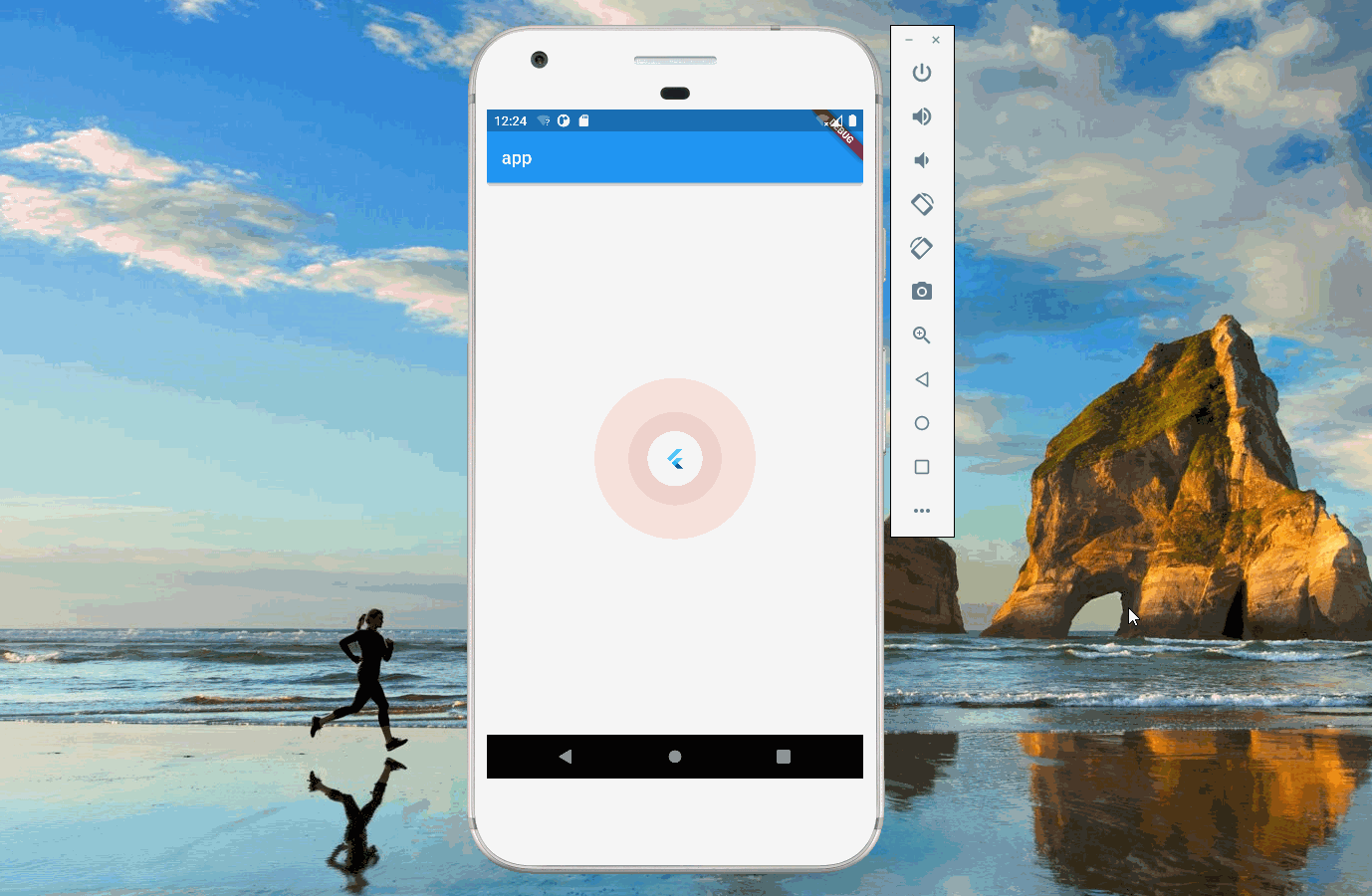

 本文介绍 flutter 中如何实现发光动画（也被称为脉冲动画、波纹动画等）。

1. 思路

 该动画由3个组件构成：中间的 Icon 、里层的光环和外层的光环。这三个组件其实叠加在一起，只是尺寸不一样，即它们在一个 Stack 里。

return Stack(
      alignment: Alignment.center,
      children: [
        Container(
          width: innerWidthAnimation.value,
          height: innerWidthAnimation.value,
          decoration: BoxDecoration(
              shape: BoxShape.circle,
              color: Colors.red.withOpacity(backGrounOpacity.value)),
        ),
        Container(
          width: outerWidthAnimation.value,
          height: outerWidthAnimation.value,
          decoration: BoxDecoration(
              shape: BoxShape.circle,
              color: Colors.red.withOpacity(backGrounOpacity.value)),
        ),
        const CircleAvatar(
          backgroundColor: Colors.white,
          radius: 30,
          child: FlutterLogo(),
        )
      ],
    );

2. 光环

 光环通过 BoxDecoration 实现，设置盒子的形状为圆形即可。盒子的两个属性会发生变化：颜色的透明度和尺寸，这两个元素由 AnimationController 控制。动画在执行过程中，就能看到光环效果了。

3. 完整代码

import 'package:flutter/material.dart';

void main() {
  runApp(const Main());
}

class Main extends StatelessWidget {
  const Main({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
        title: "app",
        home: Scaffold(
          appBar: AppBar(
            title: const Text("app"),
          ),
          body: const Center(child: Glow()),
        ));
  }
}

class Glow extends StatefulWidget {
  const Glow({Key? key}) : super(key: key);

  @override
  State<Glow> createState() => _GlowState();
}

class _GlowState extends State<Glow> with SingleTickerProviderStateMixin {
  late AnimationController controller;
  late Animation<double> innerWidthAnimation;
  late Animation<double> outerWidthAnimation;
  late Animation<double> backGrounOpacity;
  @override
  void initState() {
    controller =
        AnimationController(vsync: this, duration: const Duration(seconds: 2))
          ..addListener(() {
            setState(() {});
          });

    innerWidthAnimation =
        Tween<double>(begin: 80.0, end: 120.0).animate(controller);

    outerWidthAnimation =
        Tween<double>(begin: 150, end: 200.0).animate(controller);
    backGrounOpacity = Tween<double>(begin: 0.3, end: 0.0).animate(controller);
    super.initState();
    controller.repeat();
  }

  @override
  Widget build(BuildContext context) {
    return Stack(
      alignment: Alignment.center,
      children: [
        Container(
          width: innerWidthAnimation.value,
          height: innerWidthAnimation.value,
          decoration: BoxDecoration(
              shape: BoxShape.circle,
              color: Colors.red.withOpacity(backGrounOpacity.value)),
        ),
        Container(
          width: outerWidthAnimation.value,
          height: outerWidthAnimation.value,
          decoration: BoxDecoration(
              shape: BoxShape.circle,
              color: Colors.red.withOpacity(backGrounOpacity.value)),
        ),
        const CircleAvatar(
          backgroundColor: Colors.white,
          radius: 30,
          child: FlutterLogo(),
        )
      ],
    );
  }
}

---

1. avatar_glow
